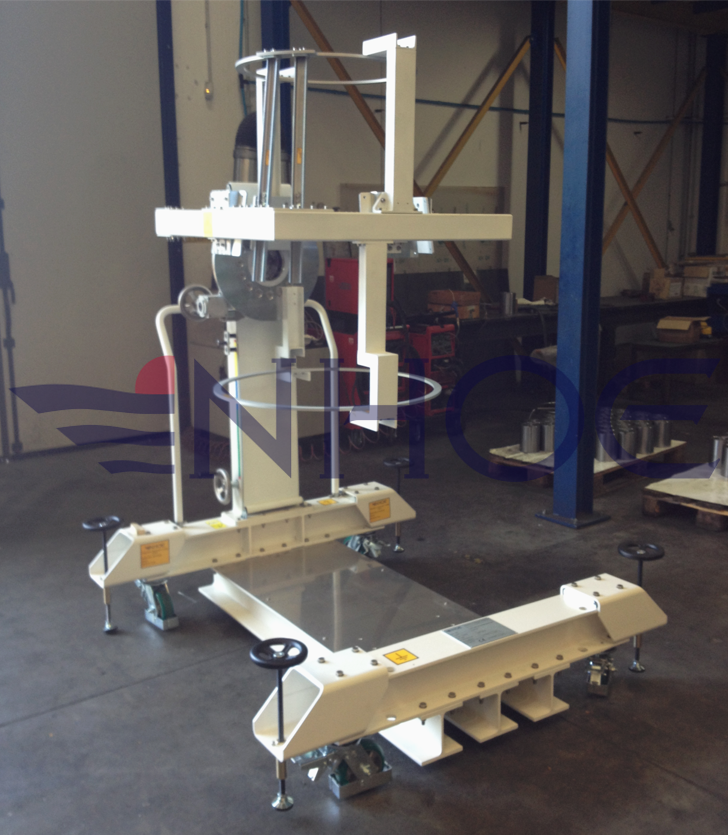

The Rotating Integration Trolley 01 (RIT-01) is designed to support, move, and rotate the Propulsion Subsystem of the S/C during its integration operation. A slew ring allows the Propulsion Subsystem rotation around its axes, and a carriage system allows vertical translation. A safety system is available for locking the system in any position. Each RIT-01 is designed according to the mass budget, rotation angle, and load cases issued by the customer.
The RIT-01 can be equipped with:
• Lifting system
• Slew ring
• Carriages
• Wheels
• Screw Jack
• Grounding points
• Handles
• Safety and lock system
Finally, Rotating Integration Trolley 01 is equipped with flight HW or Frame HW interfaces.
