Active Transport Container ISO 10′
The Active Transport Container is a commercial and reworked container, is designed to transport the antennas including its MGSE. Thanks to the special insulation and air treatment systems, manages to maintain optimal internal condition (temperature, pressure and humidity) for the antenna’s transport.
Features
1. Compliant to air and/or sea transport
2. Breathing box system to guarantee the container venting in normal transport condition
3. Breathing valves to guarantee the container venting in emergency transport case
4. Internal temperature higher than 10°C when is exposed to external temperature of -45°C and wind 15 m/s for 3 hours, the starting air temperature is 25°C
5. Internal temperature less than 40°C when is exposed to external temperature of 60°C and solar flux 1000W/m2 for 3 hours, the starting air temperature is 25°C
6. The container is equipped with two tunnels for handling by forklift
7. The container is equipped with lifting kit
8. The container is equipped with four skates or four wheel-jacks for the handling
9. The container is equipped with dehumidifier and air conditioner with related control and monitoring devices

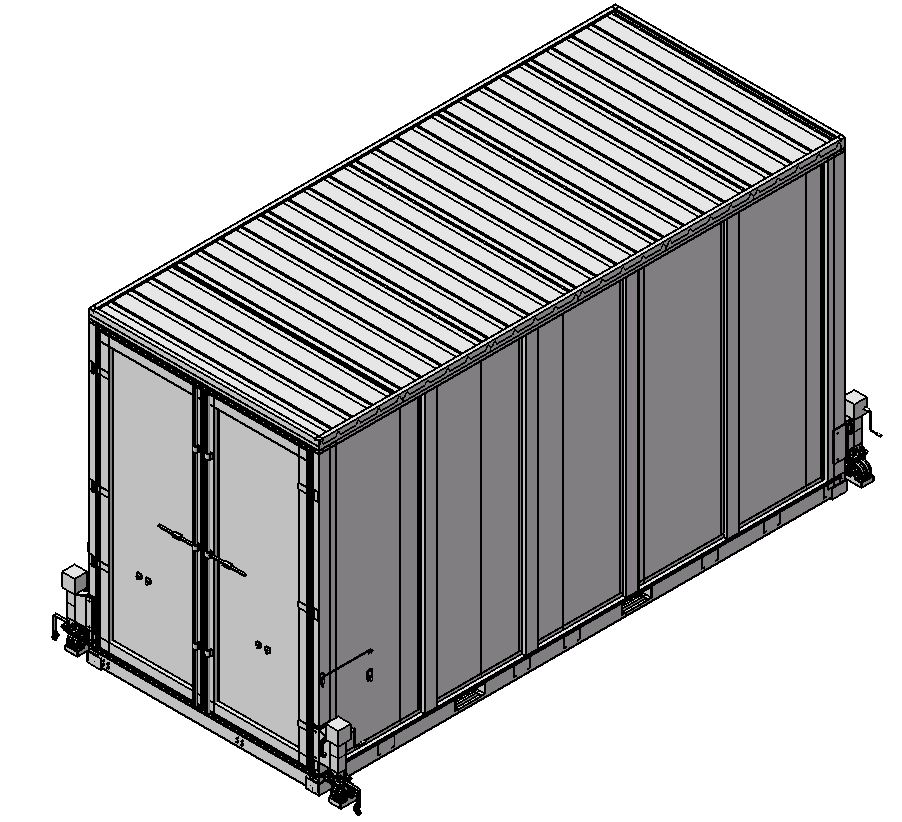

Custom Transport Container
The Custom Transport Container is made by joining two or more commercial container and after reworked. Is designed to transport the antennas including its MGSE. Thanks to the special insulation and air treatment systems, manages to maintain optimal internal condition (temperature, pressure and humidity) for the antenna’s transport.
Features
1. Compliant to air and/or sea transport
2. Breathing box system to guarantee the container venting in normal transport condition
3. Breathing valves to guarantee the container venting in emergency transport case
4. Internal temperature higher than 10°C when is exposed to external temperature of -45°C and wind 15 m/s for 3 hours, the starting air temperature is 25°C
5. Internal temperature less than 40°C when is exposed to external temperature of 60°C and solar flux 1000W/m2 for 3 hours, the starting air temperature is 25°C
6. The container is equipped with two tunnels for handling by forklift
7. The container is equipped with lifting kit
8. The container is equipped with four skates or wheel-jacks for the handling

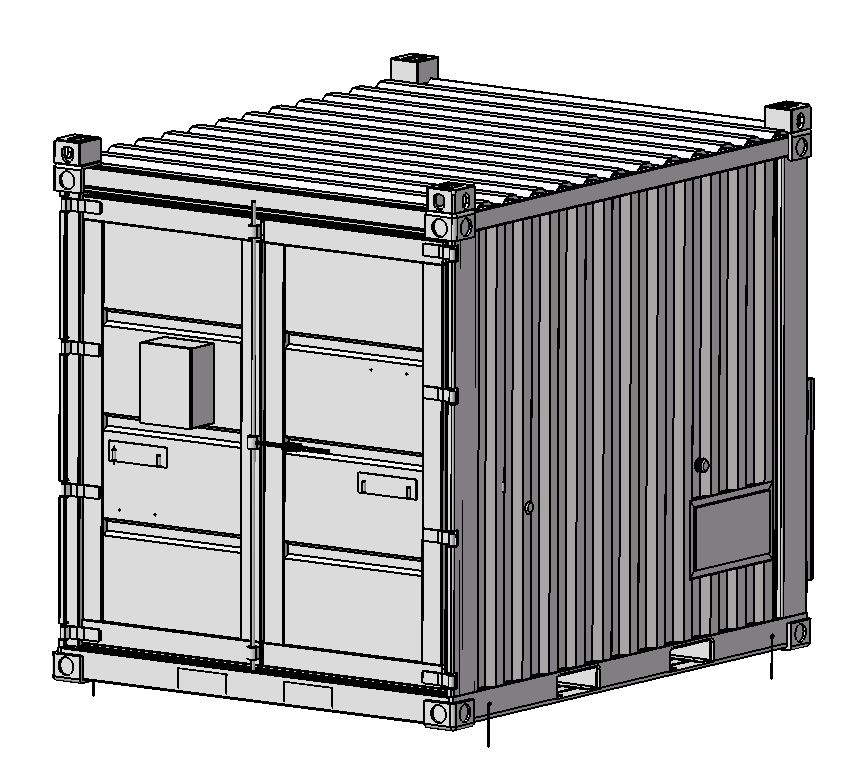

Passive Transport Container ISO 10′
The Passive Transport Container is a commercial and reworked container, is designed to transport the antennas including its MGSE. Thanks to the special insulation and air treatment systems, manages to maintain optimal internal condition (temperature, pressure and humidity) for the antenna’s transport.
Features
1. Compliant to air and/or sea transport
2. Breathing box system to guarantee the container venting in normal transport condition
3. Breathing valves to guarantee the container venting in emergency transport case
4. Internal temperature higher than 10°C when is exposed to external temperature of -45°C and wind 15 m/s for 3 hours, the starting air temperature is 25°C
5. Internal temperature less than 40°C when is exposed to external temperature of 60°C and solar flux 1000W/m2 for 3 hours, the starting air temperature is 25°C
6. The container is equipped with two tunnels for handling by forklift
7. The container is equipped with lifting kit
8. The container is equipped with four skates or four wheel-jacks for the handling

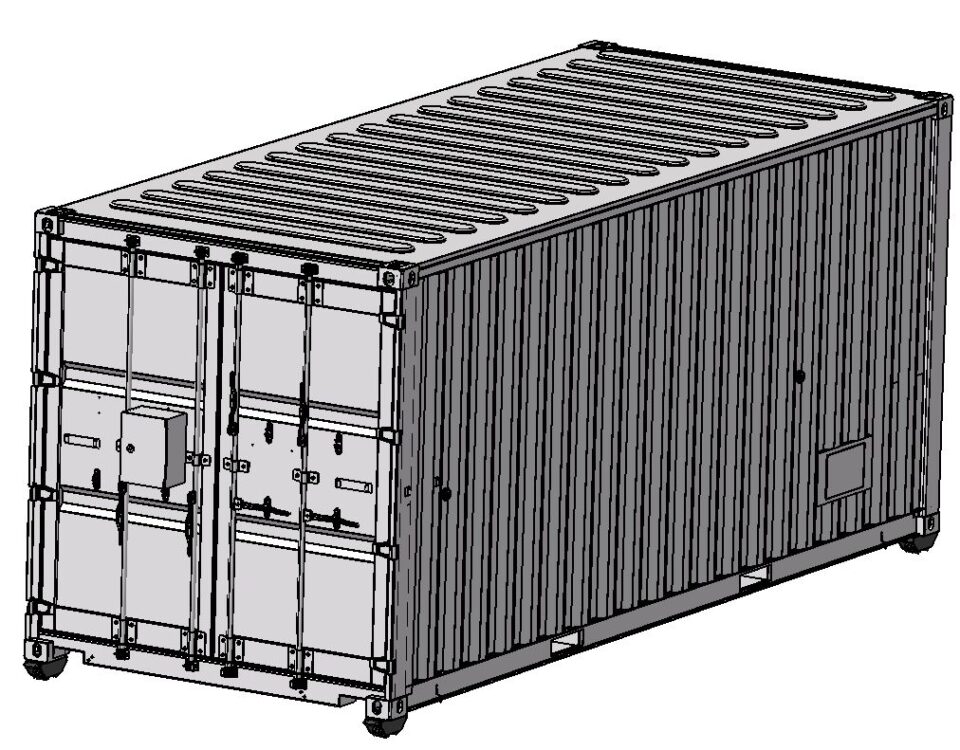

Passive Transport Container ISO 20′
The Passive Transport Container is a commercial and reworked container, is designed to transport the antennas including its MGSE. Thanks to the special insulation and air treatment systems, manages to maintain optimal internal condition (temperature, pressure and humidity) for the antenna’s transport.
Features
1. Compliant to air and/or sea transport
2. Breathing box system to guarantee the container venting in normal transport condition
3. Breathing valves to guarantee the container venting in emergency transport case
4. Internal temperature higher than 10°C when is exposed to external temperature of -45°C and wind 15 m/s for 3 hours, the starting air temperature is 25°C
5. Internal temperature less than 40°C when is exposed to external temperature of 60°C and solar flux 1000W/m2 for 3 hours, the starting air temperature is 25°C
6. The container is equipped with two tunnels for handling by forklift
7. The container is equipped with lifting kit
8. The container is equipped with four skates or four wheel-jacks for the handling
